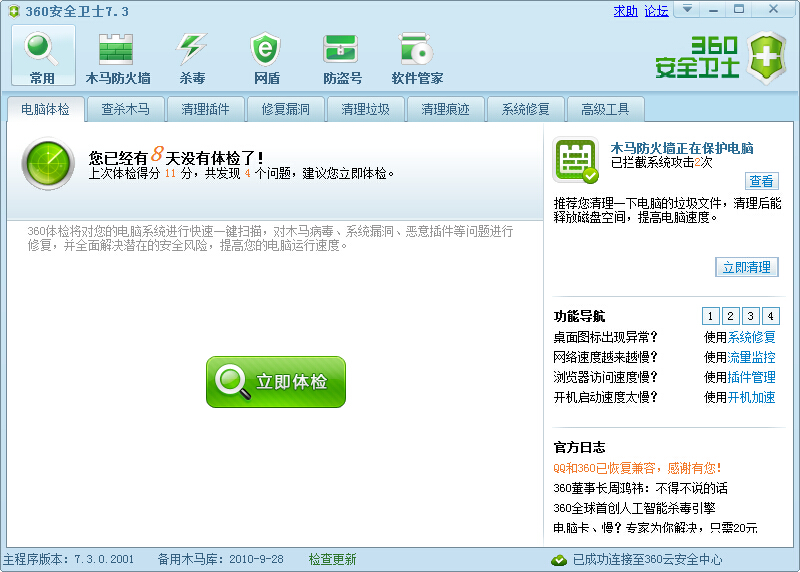

前面刚说到了Duilib的配置，接下来就是一个简单或者说稍微复杂一点点的界面。仿360 V7.0版本。这其实是Demo下面的一个例子。主要用到了Button和Tab、文本。事件就是windows的事情机制同名的。

代码非常简单啊，在VS2010 Win32开发应用——Duilib简单配置的基础之下，稍微改下cpp里面的代码即可。

// DUIDemo.cpp : 定义应用程序的入口点。
//
#include "stdafx.h"
#include "DUIDemo.h"
#include "ControlEx.h"
class CFrameWindowWnd : public CWindowWnd, public INotifyUI
{
public:
	LPCTSTR GetWindowClassName() const { return _T("UIMainFrame"); };
	UINT GetClassStyle() const { return CS_DBLCLKS; };
	void OnFinalMessage(HWND /*hWnd*/) { delete this; };
	void Init() {
		m_pCloseBtn = static_cast(m_pm.FindControl(_T("closebtn")));
		m_pMaxBtn = static_cast(m_pm.FindControl(_T("maxbtn")));
		m_pRestoreBtn = static_cast(m_pm.FindControl(_T("restorebtn")));
		m_pMinBtn = static_cast(m_pm.FindControl(_T("minbtn")));
	}
	void OnPrepare() {
	}
	void Notify(TNotifyUI& msg)
	{
		if( msg.sType == _T("windowinit") ) OnPrepare();
		else if( msg.sType == _T("click") ) {
			if( msg.pSender == m_pCloseBtn ) {
				PostQuitMessage(0);
				return;
			}
			else if( msg.pSender == m_pMinBtn ) {
				SendMessage(WM_SYSCOMMAND, SC_MINIMIZE, 0); return; }
			else if( msg.pSender == m_pMaxBtn ) {
				SendMessage(WM_SYSCOMMAND, SC_MAXIMIZE, 0); return; }
			else if( msg.pSender == m_pRestoreBtn ) {
				SendMessage(WM_SYSCOMMAND, SC_RESTORE, 0); return; }
		}
		else if(msg.sType==_T("selectchanged"))
		{
			CStdString name = msg.pSender->GetName();
			CTabLayoutUI* pControl = static_cast(m_pm.FindControl(_T("switch")));
			if(name==_T("examine"))
				pControl->SelectItem(0);
			else if(name==_T("trojan"))
				pControl->SelectItem(1);
			else if(name==_T("plugins"))
				pControl->SelectItem(2);
			else if(name==_T("vulnerability"))
				pControl->SelectItem(3);
			else if(name==_T("rubbish"))
				pControl->SelectItem(4);
			else if(name==_T("cleanup"))
				pControl->SelectItem(5);
			else if(name==_T("fix"))
				pControl->SelectItem(6);
			else if(name==_T("tool"))
				pControl->SelectItem(7);
		}
	}
	LRESULT OnCreate(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		LONG styleValue = ::GetWindowLong(*this, GWL_STYLE);
		styleValue &= ~WS_CAPTION;
		::SetWindowLong(*this, GWL_STYLE, styleValue | WS_CLIPSIBLINGS | WS_CLIPCHILDREN);
		m_pm.Init(m_hWnd);
		CDialogBuilder builder;
		CDialogBuilderCallbackEx cb;
		CControlUI* pRoot = builder.Create(_T("skin.xml"), (UINT)0,  &cb, &m_pm);
		ASSERT(pRoot && "Failed to parse XML");
		m_pm.AttachDialog(pRoot);
		m_pm.AddNotifier(this);
		Init();
		return 0;
	}
	LRESULT OnClose(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		bHandled = FALSE;
		return 0;
	}
	LRESULT OnDestroy(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		::PostQuitMessage(0L);
		bHandled = FALSE;
		return 0;
	}
	LRESULT OnNcActivate(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		if( ::IsIconic(*this) ) bHandled = FALSE;
		return (wParam == 0) ? TRUE : FALSE;
	}
	LRESULT OnNcCalcSize(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		return 0;
	}
	LRESULT OnNcPaint(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		return 0;
	}
	LRESULT OnNcHitTest(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		POINT pt; pt.x = GET_X_LPARAM(lParam); pt.y = GET_Y_LPARAM(lParam);
		::ScreenToClient(*this, &pt);
		RECT rcClient;
		::GetClientRect(*this, &rcClient);
		RECT rcCaption = m_pm.GetCaptionRect();
		if( pt.x >= rcClient.left + rcCaption.left && pt.x < rcClient.right - rcCaption.right \
			&& pt.y >= rcCaption.top && pt.y < rcCaption.bottom ) {
				CControlUI* pControl = static_cast(m_pm.FindControl(pt));
				if( pControl && _tcscmp(pControl->GetClass(), _T("ButtonUI")) != 0 &&
					_tcscmp(pControl->GetClass(), _T("OptionUI")) != 0 &&
					_tcscmp(pControl->GetClass(), _T("TextUI")) != 0 )
					return HTCAPTION;//移动窗口
		}
		return HTCLIENT;
	}
	LRESULT OnSize(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		SIZE szRoundCorner = m_pm.GetRoundCorner();
		if( !::IsIconic(*this) && (szRoundCorner.cx != 0 || szRoundCorner.cy != 0) ) {
			CRect rcWnd;
			::GetWindowRect(*this, &rcWnd);
			rcWnd.Offset(-rcWnd.left, -rcWnd.top);
			rcWnd.right++; rcWnd.bottom++;
			HRGN hRgn = ::CreateRoundRectRgn(rcWnd.left, rcWnd.top, rcWnd.right, rcWnd.bottom, szRoundCorner.cx, szRoundCorner.cy);
			::SetWindowRgn(*this, hRgn, TRUE);
			::DeleteObject(hRgn);
		}
		bHandled = FALSE;
		return 0;
	}
	LRESULT OnGetMinMaxInfo(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		MONITORINFO oMonitor = {};
		oMonitor.cbSize = sizeof(oMonitor);
		::GetMonitorInfo(::MonitorFromWindow(*this, MONITOR_DEFAULTTOPRIMARY), &oMonitor);
		CRect rcWork = oMonitor.rcWork;
		rcWork.Offset(-oMonitor.rcMonitor.left, -oMonitor.rcMonitor.top);
		LPMINMAXINFO lpMMI = (LPMINMAXINFO) lParam;
		lpMMI->ptMaxPosition.x	= rcWork.left;
		lpMMI->ptMaxPosition.y	= rcWork.top;
		lpMMI->ptMaxSize.x		= rcWork.right;
		lpMMI->ptMaxSize.y		= rcWork.bottom;
		bHandled = FALSE;
		return 0;
	}
	LRESULT OnSysCommand(UINT uMsg, WPARAM wParam, LPARAM lParam, BOOL& bHandled)
	{
		// 有时会在收到WM_NCDESTROY后收到wParam为SC_CLOSE的WM_SYSCOMMAND
		if( wParam == SC_CLOSE ) {
			::PostQuitMessage(0L);
			bHandled = TRUE;
			return 0;
		}
		BOOL bZoomed = ::IsZoomed(*this);
		LRESULT lRes = CWindowWnd::HandleMessage(uMsg, wParam, lParam);
		if( ::IsZoomed(*this) != bZoomed ) {
			if( !bZoomed ) {
				CControlUI* pControl = static_cast(m_pm.FindControl(_T("maxbtn")));
				if( pControl ) pControl->SetVisible(false);
				pControl = static_cast(m_pm.FindControl(_T("restorebtn")));
				if( pControl ) pControl->SetVisible(true);
			}
			else {
				CControlUI* pControl = static_cast(m_pm.FindControl(_T("maxbtn")));
				if( pControl ) pControl->SetVisible(true);
				pControl = static_cast(m_pm.FindControl(_T("restorebtn")));
				if( pControl ) pControl->SetVisible(false);
			}
		}
		return lRes;
	}

	LRESULT HandleMessage(UINT uMsg, WPARAM wParam, LPARAM lParam)
	{
		LRESULT lRes = 0;
		BOOL bHandled = TRUE;
		switch( uMsg ) {
		case WM_CREATE:        lRes = OnCreate(uMsg, wParam, lParam, bHandled); break;
		case WM_CLOSE:         lRes = OnClose(uMsg, wParam, lParam, bHandled); break;
		case WM_DESTROY:       lRes = OnDestroy(uMsg, wParam, lParam, bHandled); break;
		case WM_NCACTIVATE:    lRes = OnNcActivate(uMsg, wParam, lParam, bHandled); break;
		case WM_NCCALCSIZE:    lRes = OnNcCalcSize(uMsg, wParam, lParam, bHandled); break;
		case WM_NCPAINT:       lRes = OnNcPaint(uMsg, wParam, lParam, bHandled); break;
		case WM_NCHITTEST:     lRes = OnNcHitTest(uMsg, wParam, lParam, bHandled); break;
		case WM_SIZE:          lRes = OnSize(uMsg, wParam, lParam, bHandled); break;
		case WM_GETMINMAXINFO: lRes = OnGetMinMaxInfo(uMsg, wParam, lParam, bHandled); break;
		case WM_SYSCOMMAND:    lRes = OnSysCommand(uMsg, wParam, lParam, bHandled); break;
		default:
			bHandled = FALSE;
		}
		if( bHandled ) return lRes;
		if( m_pm.MessageHandler(uMsg, wParam, lParam, lRes) ) return lRes;
		return CWindowWnd::HandleMessage(uMsg, wParam, lParam);
	}
public:
	CPaintManagerUI m_pm;
private:
	CButtonUI* m_pCloseBtn;
	CButtonUI* m_pMaxBtn;
	CButtonUI* m_pRestoreBtn;
	CButtonUI* m_pMinBtn;
};

int APIENTRY _tWinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPTSTR lpCmdLine, int nCmdShow)
{
	CPaintManagerUI::SetInstance(hInstance);
	CPaintManagerUI::SetResourcePath(CPaintManagerUI::GetInstancePath() + T("skin"));
	CPaintManagerUI::SetResourceZip(_T("360SafeRes.zip"));
	HRESULT Hr = ::CoInitialize(NULL);
	if( FAILED(Hr) )
		return 0;
	CFrameWindowWnd* pFrame = new CFrameWindowWnd();
	if( pFrame == NULL )
		return 0;
	pFrame->Create(NULL, T("360安全卫士"), UI_WNDSTYLE_FRAME, 0L, 0, 0, 800, 572);
	pFrame->CenterWindow();
	pFrame->ShowWindow(true);
	CPaintManagerUI::MessageLoop();
	::CoUninitialize();
	return 0;
}

还有一个回调的

#pragma once
class ComputerExamineUI : public CContainerUI
{
public:
	ComputerExamineUI()
	{
		CDialogBuilder builder;
		CContainerUI* pComputerExamine = static_cast(builder.Create(_T("ComputerExamine.xml"), (UINT)0));
		if( pComputerExamine ) {
			this->Add(pComputerExamine);
		}
		else {
			this->RemoveAll();
			return;
		}
	}
};
class CDialogBuilderCallbackEx : public IDialogBuilderCallback
{
public:
	CControlUI* CreateControl(LPCTSTR pstrClass)
	{
		if( _tcscmp(pstrClass, _T("ComputerExamine")) == 0 ) return new ComputerExamineUI;
		return NULL;
	}
};

皮肤文件、图片的压缩包：360SafeRes(皮肤要创建一个skin目录，或者源码修改一下路径也是OK的)

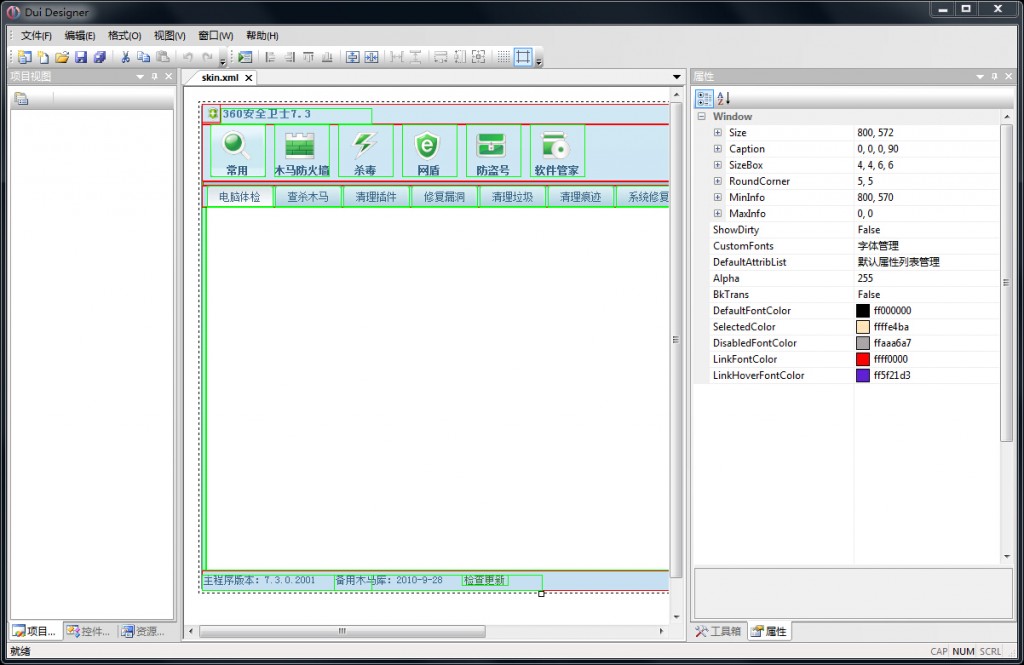

界面编辑工具：DuiDesigner
