由于项目中需要用到图文混排技术，在此稍微研究了两天，出来一个效果还算不错的东西

    图文混排技术，在不少Android应用中都已经实现，说穿了其实就是两个TextView加一个ImageView的布局罢了，代码里面实现下String的剪切就可以了，不过我这里的这个除了要实现混排效果外，还要支持Span，支持表情等，这就有点麻烦了。下面慢慢分解。先贴出RichTextImageView的布局。

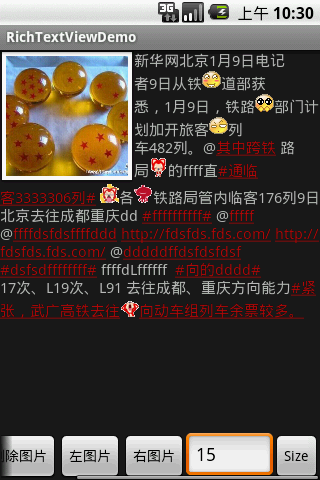

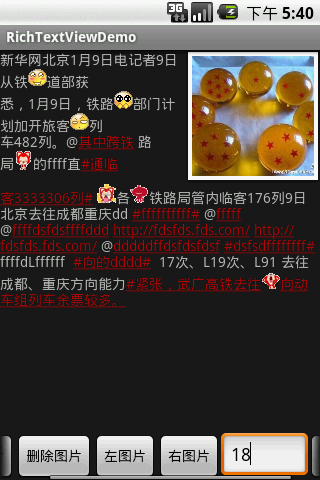

布局中的RichTextView是另外封装的一个实现Span的TextView，就是实现效果图中表情啊，@啊，#话题# 之类的，了解Span的都懂的，就不细说了。读者研究这个图文混排的时候，可以直接用TextView替代。

RichTextImageView  即本文中的图文混排的View。继承于LinearLayout，该类实现的关键代码如下：

public void setText(String t) {
  mTopText.setText("");
  mBottomText.setText("");
  mTopText.setVisibility(View.INVISIBLE);
  mBottomText.setVisibility(View.GONE);
  bRequestBottomLayout = true;
  if (t == null)
   t = "";
//  Log.e("setText", t);

  mTextContent = t;
  mTopText.setText(mTextContent);
  requestLayout();

 }


public void setImage(int id) {
  mImageContent = id;
  mPreviewImage.setImageResource(id);
  mPreview.setVisibility(View.VISIBLE);
  if (!Util.isStringEmpty(mTextContent))
   setText(mTextContent);
 }

private void iniViews() {
  mLinearLayout = (LinearLayout) findViewById(R.id.linearLayout1);
  mTopText = (RichTextView) findViewById(R.id.lefttext);
  mBottomText = (RichTextView) findViewById(R.id.bottomtext);
  if(IMAGE_LOCATION == IMAGE_LOCATION_RIGHT){
   mPreview = (RelativeLayout) findViewById(R.id.layout_preimage_isgif_right);
   mPreviewImage = (ImageView) findViewById(R.id.preimage_statues_right);
   mPreviewImageIsGif = (ImageView) findViewById(R.id.preimage_isgif_right);
  }else if(IMAGE_LOCATION == IMAGE_LOCATION_LEFT){
   mPreview = (RelativeLayout) findViewById(R.id.layout_preimage_isgif_left);
   mPreviewImage = (ImageView) findViewById(R.id.preimage_statues_left);
   mPreviewImageIsGif = (ImageView) findViewById(R.id.preimage_isgif_left);
  }
 }

 public void setImageLocation(int l){
  if(l != IMAGE_LOCATION_RIGHT && l != IMAGE_LOCATION_LEFT)
   return;
  else{
   IMAGE_LOCATION = l;
   mPreview.setVisibility(View.GONE);
   iniViews();
   setImage(mImageContent);
  }
 }



@Override
 protected void onLayout(boolean changed, int l, int t, int r, int b) {
  // TODO Auto-generated method stub
  super.onLayout(changed, l, t, r, b);
  if (Util.isStringEmpty(mTextContent))
   return;
//  Log.e("top text 宽 高",
//    mTopText.getWidth() + " " + mTopText.getHeight());
//  Log.e("top text 单行高度", "" + mTopText.getLineHeight());

//  Rect rect = getStringRect(mTextContent, mTopText.getPaint());
//  Log.e("文本的宽 高", rect.width() + " " + rect.height());

  // toptext最多能显示的行数
  int topTextMaxRows = mTopText.getHeight() / mTopText.getLineHeight();

  // 显示这些内容真实占用的行数
  int textRows = mTopText.getLineCount();
//  Log.e("top text最多能显示的行数", "" + topTextMaxRows);
//  Log.e("当前文本实际占用的行数", "" + textRows);

  //由于文本可能带有表情，重新计算显示行数，以保证显示正确
  Rect lineR = new Rect();
  int realH = 0;     //toptext真实高度
  int i = 0;
  for(i = 0; i < topTextMaxRows; i++){
   try{
    mTopText.getLineBounds(i, lineR);
   }catch(IndexOutOfBoundsException e){
    break;
   }
   realH += lineR.height();
   if(realH >= mTopText.getHeight())
    break;
  }
//  Log.e("当前view实际能显示的行数为", "" + i);
  topTextMaxRows = i;

  //如果toptext显示不下的话，显示到bottomtext里面去
  if (textRows >= topTextMaxRows && bRequestBottomLayout) {
   // toptext最后一个可见字符的位置
   int lastindex = mTopText.getLayout().getLineVisibleEnd(
     topTextMaxRows - 1);


   ClickableSpan[] cs = mTopText.getSpans();
   int spanstart = 0;
   int spanend = 0;
   spanstring = "";
   STATE = 0; // 1网页 2人名 3话题
   for (ClickableSpan c : cs) {
    spanstart = mTopText.getSpanStart(c);
    spanend = mTopText.getSpanEnd(c);
    if (spanstart <= lastindex && spanend > lastindex) {
     if (c instanceof LinkClickableSpan) {
//      Log.e("转角span类型", "网页");
      spanstring = ((LinkClickableSpan) c).getLink();
      STATE = 1;
     }
     if (c instanceof NameClickableSpan) {
//      Log.e("转角span类型", "人名");
      spanstring = ((NameClickableSpan) c).getName();
      STATE = 2;
     }
     if (c instanceof TopicClickableSpan) {
//      Log.e("转角span类型", "话题");
      spanstring = ((TopicClickableSpan) c).getTopic();
      STATE = 3;
     }
     break;
    }
   }

   mTopText.setText(mTextContent.substring(0, lastindex));
   mTopText.setVisibility(View.VISIBLE);
   // 当行数不是整数时，调整内容会有下面半行没遮住，所以干脆都处理完以后再显示出来
   mBottomText.setText(mTextContent.substring(lastindex,
     mTextContent.length()) + mBottomText.getText().toString());
   if (mBottomText.getText().length() > 0 && bRequestBottomLayout){
    mBottomText.setVisibility(View.VISIBLE);
    mHandler.post(new Runnable() {

     @Override
     public void run() {
      // TODO Auto-generated method stub
      mBottomText.requestLayout();
      bRequestBottomLayout = false;
     }
    });
   }

   if (STATE != 0 || !bRequestBottomLayout) {
    Log.e("spanstring", spanstring);
//    Log.e("", "移除转角span");
    mTopText.getSpannable().removeSpan(mTopText.getSpans()[mTopText.getSpans().length - 1]);
    switch (STATE) {
    case 1:
     mTopText.getSpannable().setSpan(
       mTopText.new LinkClickableSpan(spanstring),
       spanstart,
       lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
     mBottomText.getSpannable().setSpan(
       mBottomText.new LinkClickableSpan(spanstring),
       0,
       spanend - lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
//     Log.e("", "网页");
     break;
    case 2:
     mTopText.getSpannable().setSpan(
       mTopText.new NameClickableSpan(spanstring),
       spanstart,
       lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
     mBottomText.getSpannable().setSpan(
       mBottomText.new NameClickableSpan(spanstring),
       0,
       spanend - lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
//     Log.e("", "人名");
     break;
    case 3:
     mTopText.getSpannable().setSpan(
       mTopText.new TopicClickableSpan(spanstring),
       spanstart,
       lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
     mBottomText.getSpannable().setSpan(
       mBottomText.new TopicClickableSpan(spanstring),
       0,
       spanend - lastindex,
       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
//     Log.e("", "话题");
     break;
    }

    mTopText.setText(mTopText.getSpannable(), BufferType.SPANNABLE);
    mBottomText.setText(mBottomText.getSpannable(), BufferType.SPANNABLE);
   }

  }

 }
