FFmpeg源代码简单分析——avcodec_close

Home / C++ MrLee 2015-4-7 3247

这节简单分析FFmpeg的avcodec_close()函数。该函数用于关闭编码器。avcodec_close()函数的声明位于libavcodec avcodec.h,如下所示。
/**
 * Close a given AVCodecContext and free all the data associated with it
 * (but not the AVCodecContext itself).
 *
 * Calling this function on an AVCodecContext that hasn't been opened will free
 * the codec-specific data allocated in avcodec_alloc_context3() /
 * avcodec_get_context_defaults3() with a non-NULL codec. Subsequent calls will
 * do nothing.
 */
int avcodec_close(AVCodecContext *avctx);

该函数只有一个参数,就是需要关闭的编码器的AVCodecContext。

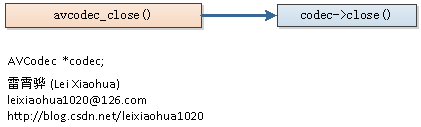

函数调用关系图

函数的调用关系图如下所示。

avcodec_close()

avcodec_close()的定义位于libavcodec utils.c,如下所示。
av_cold int avcodec_close(AVCodecContext *avctx)
{
    if (!avctx)
        return 0;
    if (avcodec_is_open(avctx)) {
        FramePool *pool = avctx->internal->pool;
        int i;
        if (CONFIG_FRAME_THREAD_ENCODER &&
            avctx->internal->frame_thread_encoder && avctx->thread_count > 1) {
            ff_frame_thread_encoder_free(avctx);
        }
        if (HAVE_THREADS && avctx->internal->thread_ctx)
            ff_thread_free(avctx);
        //关闭编解码器
        if (avctx->codec && avctx->codec->close)
            avctx->codec->close(avctx);
        avctx->coded_frame = NULL;
        avctx->internal->byte_buffer_size = 0;
        av_freep(&avctx->internal->byte_buffer);
        av_frame_free(&avctx->internal->to_free);
        for (i = 0; i < FF_ARRAY_ELEMS(pool->pools); i++)
            av_buffer_pool_uninit(&pool->pools[i]);
        av_freep(&avctx->internal->pool);
        if (avctx->hwaccel && avctx->hwaccel->uninit)
            avctx->hwaccel->uninit(avctx);
        av_freep(&avctx->internal->hwaccel_priv_data);
        av_freep(&avctx->internal);
    }
    if (avctx->priv_data && avctx->codec && avctx->codec->priv_class)
        av_opt_free(avctx->priv_data);
    av_opt_free(avctx);
    av_freep(&avctx->priv_data);
    if (av_codec_is_encoder(avctx->codec))
        av_freep(&avctx->extradata);
    avctx->codec = NULL;
    avctx->active_thread_type = 0;
    return 0;
}

从avcodec_close()的定义可以看出,该函数释放AVCodecContext中有关的变量,并且调用了AVCodec的close()关闭了解码器。

AVCodec->close()

AVCodec的close()是一个函数指针,指向了特定编码器的关闭函数。在这里我们以libx264为例,看一下它对应的AVCodec的结构体的定义,如下所示。
AVCodec ff_libx264_encoder = {
    .name             = "libx264",
    .long_name        = NULL_IF_CONFIG_SMALL("libx264 H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10"),
    .type             = AVMEDIA_TYPE_VIDEO,
    .id               = AV_CODEC_ID_H264,
    .priv_data_size   = sizeof(X264Context),
    .init             = X264_init,
    .encode2          = X264_frame,
    .close            = X264_close,
    .capabilities     = CODEC_CAP_DELAY | CODEC_CAP_AUTO_THREADS,
    .priv_class       = &x264_class,
    .defaults         = x264_defaults,
    .init_static_data = X264_init_static,
};

从ff_libx264_encoder的定义可以看出:close()函数对应的是X264_close()函数。继续看一下X264_close()函数的定义,如下所示。
static av_cold int X264_close(AVCodecContext *avctx)
{
    X264Context *x4 = avctx->priv_data;
    av_freep(&avctx->extradata);
    av_freep(&x4->sei);
    //关闭编码器
    if (x4->enc)
        x264_encoder_close(x4->enc);
    av_frame_free(&avctx->coded_frame);
    return 0;
}
从X264_close()的定义可以看出,该函数调用了libx264的x264_encoder_close()关闭了libx264编码器。
