上一篇讲到边缘检测，本篇介绍轮廓检测，轮廓检测的原理通俗的说就是掏空内部点，比如原图中有3*3的矩形点。那么就可以将中间的那一点去掉。

#ifdef _CH_
#pragma package
#endif

#ifndef _EiC
#include "cv.h"
#include "cxcore.h"
#include "highgui.h"
#include
#endif

#define w 500
int levels = 3;
CvSeq* contours = 0;

void on_trackbar(int pos)
{
    IplImage* cnt_img = cvCreateImage( cvSize(w,w), 8, 3 );
    CvSeq* _contours = contours;
    int _levels = levels - 3;
    if( _levels <= 0 ) // get to the nearest face to make it look more funny
        _contours = _contours->h_next->h_next->h_next;
    cvZero( cnt_img );
    cvDrawContours( cnt_img, _contours, CV_RGB(255,0,0), CV_RGB(0,255,0), _levels, 3, CV_AA, cvPoint(0,0) );
    cvShowImage( "contours", cnt_img );
    cvReleaseImage( &cnt_img );
}

int main( int argc, char** argv )
{
    int i, j;
    CvMemStorage* storage = cvCreateMemStorage(0);
    IplImage* img = cvCreateImage( cvSize(w,w), 8, 1 );

    cvZero( img );

    for( i=0; i < 6; i++ )
    {
        int dx = (i%2)*250 - 30;
        int dy = (i/2)*150;
        CvScalar white = cvRealScalar(255);
        CvScalar black = cvRealScalar(0);

        if( i == 0 )
        {
            for( j = 0; j <= 10; j++ )
            {
                double angle = (j+5)*CV_PI/21;
                cvLine(img, cvPoint(cvRound(dx+100+j*10-80*cos(angle)),
                    cvRound(dy+100-90*sin(angle))),
                    cvPoint(cvRound(dx+100+j*10-30*cos(angle)),
                    cvRound(dy+100-30*sin(angle))), white, 1, 8, 0);
            }
        }

        cvEllipse( img, cvPoint(dx+150, dy+100), cvSize(100,70), 0, 0, 360, white, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+115, dy+70), cvSize(30,20), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+185, dy+70), cvSize(30,20), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+115, dy+70), cvSize(15,15), 0, 0, 360, white, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+185, dy+70), cvSize(15,15), 0, 0, 360, white, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+115, dy+70), cvSize(5,5), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+185, dy+70), cvSize(5,5), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+150, dy+100), cvSize(10,5), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+150, dy+150), cvSize(40,10), 0, 0, 360, black, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+27, dy+100), cvSize(20,35), 0, 0, 360, white, -1, 8, 0 );
        cvEllipse( img, cvPoint(dx+273, dy+100), cvSize(20,35), 0, 0, 360, white, -1, 8, 0 );
    }

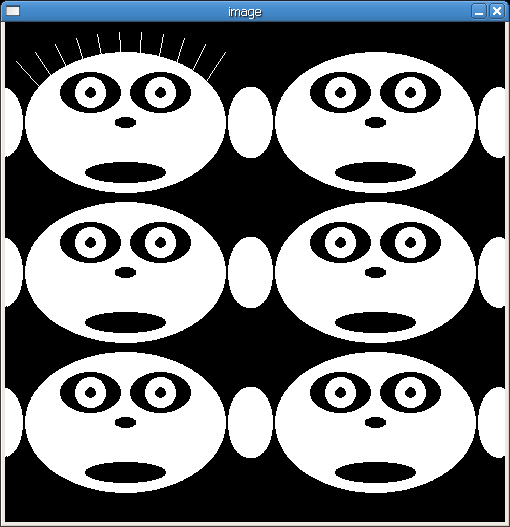

    cvNamedWindow( "image", 1 );
    cvShowImage( "image", img );

    cvFindContours( img, storage, &contours, sizeof(CvContour),
                    CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, cvPoint(0,0) );

    // comment this out if you do not want approximation
    contours = cvApproxPoly( contours, sizeof(CvContour), storage, CV_POLY_APPROX_DP, 3, 1 );

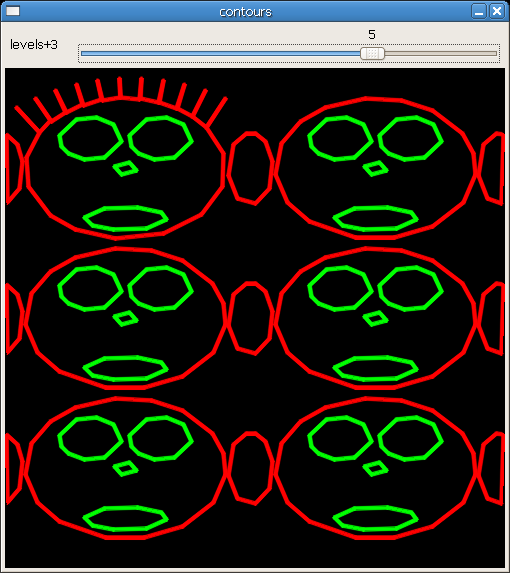

    cvNamedWindow( "contours", 1 );
    cvCreateTrackbar( "levels+3", "contours", &levels, 7, on_trackbar );

    on_trackbar(0);
    cvWaitKey(0);
    cvReleaseMemStorage( &storage );
    cvReleaseImage( &img );

    return 0;
}

#ifdef _EiC
main(1,"");
#endif
