Android Bluetooth(蓝牙)实例

Home / Android MrLee 2016-9-3 3016

在很多方面,蓝牙是一种能够发送或接受两个不同的设备之间传输的数据。 Android平台包含了蓝牙框架,使设备以无线方式与其他蓝牙设备进行数据交换的支持。
Android提供蓝牙API来执行这些不同的操作。
  1. 扫描其他蓝牙设备
  2. 获取配对设备列表
  3. 连接到通过服务发现其他设备
Android提供BluetoothAdapter类蓝牙通信。通过调用创建的对象的静态方法getDefaultAdapter()。其语法如下给出。
private BluetoothAdapter BA;
BA = BluetoothAdapter.getDefaultAdapter();

为了使用设备的蓝牙,调用下列蓝牙ACTION_REQUEST_ENABLE的意图。其语法如下:
Intent turnOn = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
startActivityForResult(turnOn, 0);

除了这个常量,有提供其它的API,支持不同任务的其他常数。它们在下面列出。
private Set<BluetoothDevice>pairedDevices;
pairedDevices = BA.getBondedDevices();


Sr.No 常数说明
1 ACTION_REQUEST_DISCOVERABLE 此常数用于开启蓝牙的发现
2 ACTION_STATE_CHANGED 此常量将通知蓝牙状态已经改变
3 ACTION_FOUND 此常数用于接收关于所发现的每个设备的信息
启用了蓝牙功能之后,可以通过调用 getBondedDevices()方法来获取配对设备列表。它返回一组的蓝牙设备。其语法如下:
除了配对的设备,还有API,让更多蓝牙控制权等方法。它们在下面列出。
Sr.No 方法及说明
1 enable() 这种方法使适配器,如果未启用
2 isEnabled() 如果适配器已启用此方法返回true
3 disable() 该方法禁用适配器
4 getName() 此方法返回的蓝牙适配器的名称
5 setName(String name) 此方法更改蓝牙名称
6 getState() 此方法返回蓝牙适配器的当前状态
7 startDiscovery() 此方法开始蓝牙120秒的发现过程。

示例

这个例子提供了示范BluetoothAdapter类操纵蓝牙,并显示通过蓝牙配对设备列表。
为了试验这个例子,需要在实际设备上运行此程序
步骤 描述
1 使用Android Studio创建Android应用程序,并将其命名为Bluetooth,创建这个项目,确保目标SDK编译在Android SDK的最新版本或使用更高级别的API。
2 修改 src/MainActivity.java 文件中添加代码
3 如果修改所需的布局XML文件 res/layout/activity_main.xml  添加GUI组件
4 修改 res/values/string.xml  文件,并添加必要的字符串常量组件
5 修改 AndroidManifest.xml 添加必要的权限。
6 运行应用程序并选择运行Android的设备,并在其上安装的应用和验证结果。
以下是 src/com.yiibai.bluetooth/MainActivity.java 文件的内容:
package com.example.bluetooth;
import java.util.ArrayList;
import java.util.List;
import java.util.Set;
import android.os.Bundle;
import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListAdapter;
import android.widget.ListView;
import android.widget.Toast;
public class MainActivity extends Activity {
   private Button On,Off,Visible,list;
   private BluetoothAdapter BA;
   private Set<BluetoothDevice>pairedDevices;
   private ListView lv;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      On = (Button)findViewById(R.id.button1);
      Off = (Button)findViewById(R.id.button2);
      Visible = (Button)findViewById(R.id.button3);
      list = (Button)findViewById(R.id.button4);
      lv = (ListView)findViewById(R.id.listView1);
      BA = BluetoothAdapter.getDefaultAdapter();
   }
   public void on(View view){
      if (!BA.isEnabled()) {
         Intent turnOn = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
         startActivityForResult(turnOn, 0);
         Toast.makeText(getApplicationContext(),"Turned on"
         ,Toast.LENGTH_LONG).show();
      }
      else{
         Toast.makeText(getApplicationContext(),"Already on",
         Toast.LENGTH_LONG).show();
         }
   }
   public void list(View view){
      pairedDevices = BA.getBondedDevices();
      ArrayList list = new ArrayList();
      for(BluetoothDevice bt : pairedDevices)
         list.add(bt.getName());
      Toast.makeText(getApplicationContext(),"Showing Paired Devices",
      Toast.LENGTH_SHORT).show();
      final ArrayAdapter adapter = new ArrayAdapter
      (this,android.R.layout.simple_list_item_1, list);
      lv.setAdapter(adapter);
   }
   public void off(View view){
      BA.disable();
      Toast.makeText(getApplicationContext(),"Turned off" ,
      Toast.LENGTH_LONG).show();
   }
   public void visible(View view){
      Intent getVisible = new Intent(BluetoothAdapter.
      ACTION_REQUEST_DISCOVERABLE);
      startActivityForResult(getVisible, 0);
   }
   @Override
   public boolean onCreateOptionsMenu(Menu menu) {
      // Inflate the menu; this adds items to the action bar if it is present.
      getMenuInflater().inflate(R.menu.main, menu);
      return true;
   }
}

这里是 activity_main.xml 文件的内容:
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingBottom="@dimen/activity_vertical_margin"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   tools:context=".MainActivity" >
   <ScrollView
      android:id="@+id/scrollView1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_alignParentBottom="true"
      android:layout_alignParentLeft="true"
      android:layout_alignParentRight="true"
      android:layout_alignParentTop="true" >
   <LinearLayout
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:orientation="vertical" >
   <TextView
      android:id="@+id/textView1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="@string/app_name"
      android:textAppearance="?android:attr/textAppearanceLarge" />
   <Button
      android:id="@+id/button1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:onClick="on"
      android:text="@string/on" />
   <Button
      android:id="@+id/button2"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:onClick="visible"
      android:text="@string/Visible" />
   <Button
      android:id="@+id/button3"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:onClick="list"
      android:text="@string/List" />
   <Button
      android:id="@+id/button4"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:onClick="off"
      android:text="@string/off" />
   <ListView
      android:id="@+id/listView1"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:visibility="visible" >
   </ListView>
   </LinearLayout>
</ScrollView>
</RelativeLayout>

这里是 Strings.xml 文件的内容:
<?xml version="1.0" encoding="utf-8"?>
<resources>
   <string name="app_name">Bluetooth</string>
   <string name="action_settings">Settings</string>
   <string name="hello_world">Hello world!</string>
   <string name="on">Turn On</string>
   <string name="off">Turn Off</string>
   <string name="Visible">Get Visible</string>
   <string name="List">List Devices</string>
</resources>

这里是 AndroidManifest.xml 文件的内容:
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.yiibai.bluetooth"
   android:versionCode="1"
   android:versionName="1.0" >
   <uses-sdk
      android:minSdkVersion="8"
      android:targetSdkVersion="17" />
   <uses-permission android:name="android.permission.BLUETOOTH"/>
   <uses-permission android:name="android.permission.BLUETOOTH_ADMIN"/>
   <application
      android:allowBackup="true"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >
      <activity
         android:name="com.yiibai.bluetooth.MainActivity"
         android:label="@string/app_name" >
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

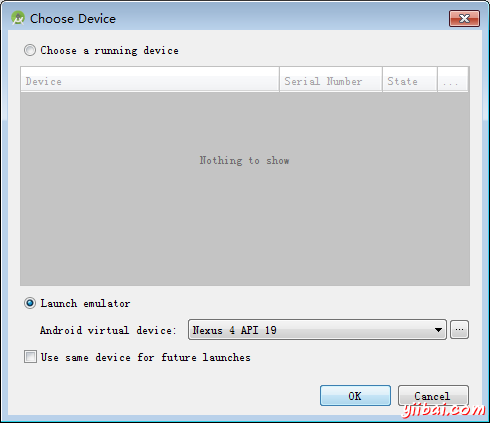

让我们试着运行AndroidCapture应用程序。假设你已经连接实际的Android移动设备到计算机。启动应用程序之前,Eclipse会显示如下窗口,选择要运行的Android应用程序的选项。

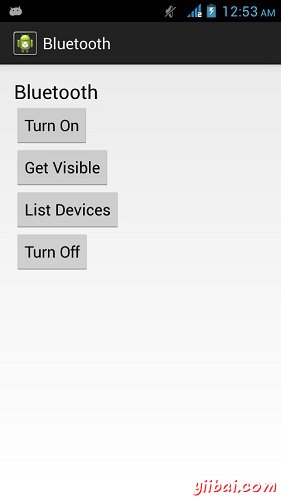

选择移动设备作为一个选项,然后检查移动设备将显示如下界面:

Anroid Bluetooth Tutorial

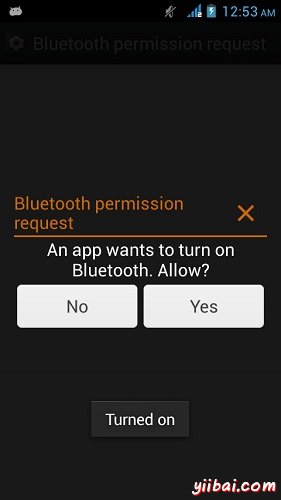

现在选择打开开启蓝牙。但是当选择它,蓝牙将不会被打开。事实上它会询问许可,以启用蓝牙。

Anroid Bluetooth Tutorial

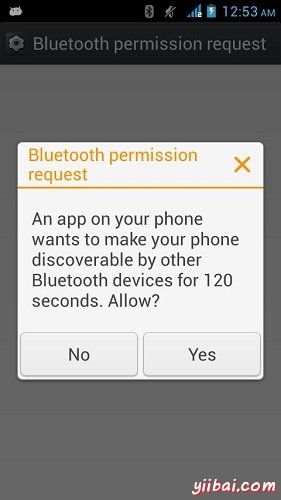

现在,只需要选择设置可见按钮来打开视图。下面的屏幕会出现要求许可才能打开发现120秒。

Anroid Bluetooth Tutorial

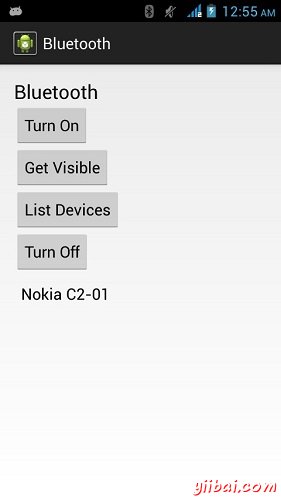

现在,只要选择列表中的设备选项。它会列出倒在列表视图中的配对设备。就我而言,只有一个配对设备。它如下所示。

Anroid Bluetooth Tutorial

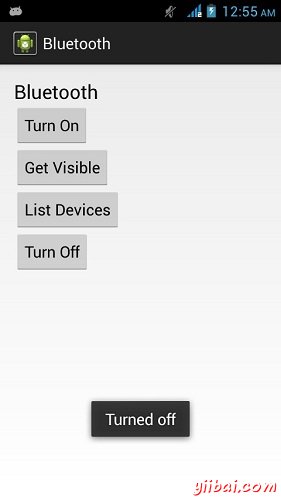

现在,只需选择关闭按钮来关闭蓝牙。当关掉蓝牙指示成功切换关闭蓝牙会出现以下消息。

Anroid Bluetooth Tutorial

以下代码下载:http://pan.baidu.com/s/1o69hnaa
