一、分水岭算法简介

分水岭分割方法，是一种基于拓扑理论的数学形态学的分割方法，其基本思想是把图像看作是测地学上的拓扑地貌，图像中每一点像素的灰度值表示该点的海拔高度，每一个局部极小值及其影响区域称为集水盆，而集水盆的边界则形成分水岭。分水岭的概念和形成可以通过模拟浸入过程来说明。在每一个局部极小值表面，刺穿一个小孔，然后把整个模型慢慢浸入水中，随着浸入的加深，每一个局部极小值的影响域慢慢向外扩展，在两个集水盆汇合处构筑大坝，即形成分水岭。 分水岭算法一般和区域生长法或聚类分析法相结合。
分水岭算法一般用于分割感兴趣的图像区域，应用如细胞边界的分割，分割出相片中的头像等等。
二、分水岭用opencv函数实现
分水岭算法在opencv2库中实现函数是：
头文件：#include <opencv2/imgproc/imgproc.hpp>
函数声明：CV_EXPORTS_W void watershed( InputArray image, InputOutputArray markers );
参数：
InputArray image  要分割的原始图片
InputOutputArray markers 标记数组，非零的32位有符号的int型数组，用于标记出要分割的关键点，进而区域生长，扩展出感兴趣的区域。
实现程序： watershedSegmenter.h

#if !defined WATERSHS
#define WATERSHS

#include <opencv2/core/core.hpp>
#include <opencv2/imgproc/imgproc.hpp>

class WatershedSegmenter {

  private:

      cv::Mat markers;

  public:

      void setMarkers(const cv::Mat& markerImage) {

        // Convert to image of ints
        markerImage.convertTo(markers,CV_32S);
      }

      cv::Mat process(const cv::Mat &image) {

        // Apply watershed
        cv::watershed(image,markers);

        return markers;
      }

      // Return result in the form of an image
      cv::Mat getSegmentation() {

        cv::Mat tmp;
        // all segment with label higher than 255
        // will be assigned value 255
        markers.convertTo(tmp,CV_8U);

        return tmp;
      }

      // Return watershed in the form of an image
      cv::Mat getWatersheds() {

        cv::Mat tmp;
        markers.convertTo(tmp,CV_8U,255,255);

        return tmp;
      }
};


#endif

segment.cpp

#include <iostream>
#include <opencv2/core/core.hpp>
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/highgui/highgui.hpp>
#include "watershedSegmentation.h"


int main()
{
    // Read input image
    cv::Mat image= cv::imread("group.jpg");
    if (!image.data)
        return 0;

    // Display the image
    cv::namedWindow("Original Image");
    cv::imshow("Original Image",image);

    // Get the binary map
    cv::Mat binary;

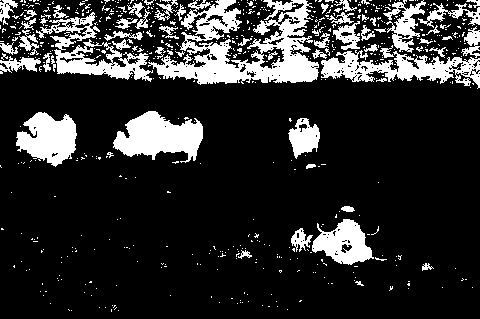

    binary= cv::imread("binary.bmp",0);

    // Display the binary image
    cv::namedWindow("Binary Image");
    cv::imshow("Binary Image",binary);

    // Eliminate noise and smaller objects
    cv::Mat fg;
    cv::erode(binary,fg,cv::Mat(),cv::Point(-1,-1),6);

    // Display the foreground image
    cv::namedWindow("Foreground Image");
    cv::imshow("Foreground Image",fg);
    cv::imwrite("ForegroundImage.jpg",fg);
    // Identify image pixels without objects
    cv::Mat bg;
    cv::dilate(binary,bg,cv::Mat(),cv::Point(-1,-1),6);
    cv::threshold(bg,bg,1,128,cv::THRESH_BINARY_INV);

    // Display the background image
    cv::namedWindow("Background Image");
    cv::imshow("Background Image",bg);
    cv::imwrite("BackgroundImage.jpg",bg);
    // Show markers image
    cv::Mat markers(binary.size(),CV_8U,cv::Scalar(0));
    markers= fg+bg;
    cv::namedWindow("Markers");
    cv::imshow("Markers",markers);
    cv::imwrite("Markers.jpg",markers);
    // Create watershed segmentation object
    WatershedSegmenter segmenter;

    // Set markers and process
    segmenter.setMarkers(markers);
    segmenter.process(image);

    // Display segmentation result
    cv::namedWindow("Segmentation");
    cv::imshow("Segmentation",segmenter.getSegmentation());
    cv::imwrite("Segmentation.jpg",segmenter.getSegmentation());
    // Display watersheds
    cv::namedWindow("Watersheds");
    cv::imshow("Watersheds",segmenter.getWatersheds());
    cv::imwrite("Watersheds.jpg",segmenter.getWatersheds());
    // Open another image
    image= cv::imread("tower.jpg");

    // Identify background pixels
    cv::Mat imageMask(image.size(),CV_8U,cv::Scalar(0));
    cv::rectangle(imageMask,cv::Point(5,5),cv::Point(image.cols-5,image.rows-5),cv::Scalar(255),3);
    // Identify foreground pixels (in the middle of the image)
    cv::rectangle(imageMask,cv::Point(image.cols/2-10,image.rows/2-10),
                         cv::Point(image.cols/2+10,image.rows/2+10),cv::Scalar(1),10);

    // Set markers and process
    segmenter.setMarkers(imageMask);
    segmenter.process(image);

    // Display the image with markers
    cv::rectangle(image,cv::Point(5,5),cv::Point(image.cols-5,image.rows-5),cv::Scalar(255,255,255),3);
    cv::rectangle(image,cv::Point(image.cols/2-10,image.rows/2-10),
                         cv::Point(image.cols/2+10,image.rows/2+10),cv::Scalar(1,1,1),10);
    cv::namedWindow("Image with marker");
    cv::imshow("Image with marker",image);
    cv::imwrite("Image with marker.jpg",image);
    // Display watersheds
    cv::namedWindow("Watersheds of foreground object");
    cv::imshow("Watersheds of foreground object",segmenter.getWatersheds());
    cv::imwrite("Watersheds of foreground object.jpg",segmenter.getWatersheds());

    cv::waitKey();
    return 0;
}

程序运行结果：

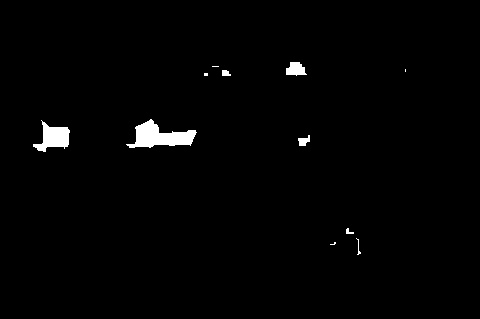

fg

bg

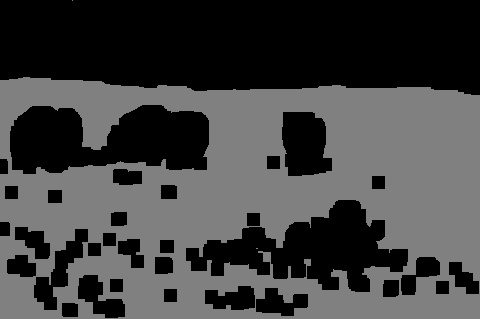

markers

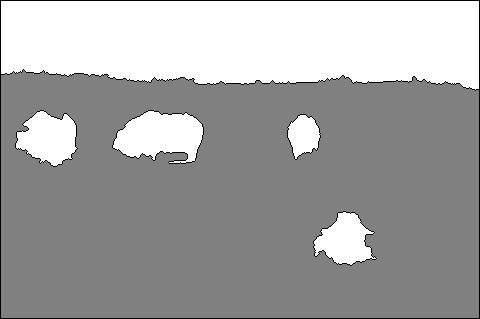

Segmentation

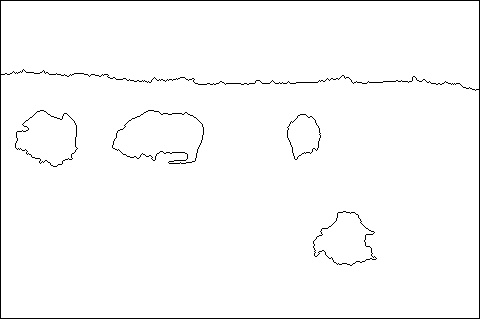

Watersheds

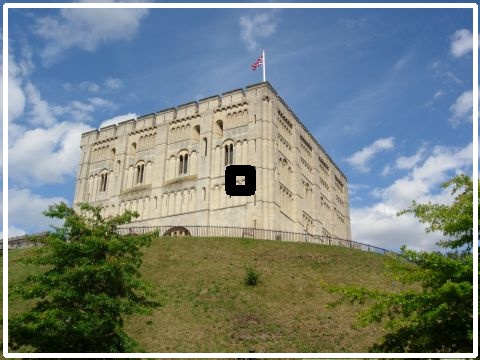

Image with marker.jpg

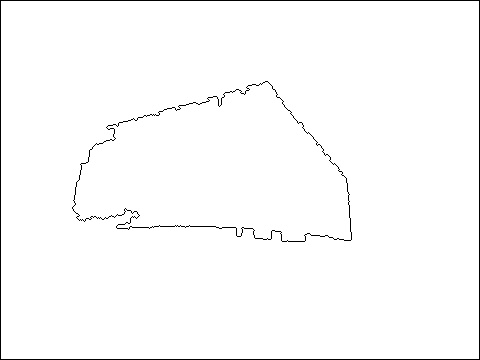

Watersheds of foreground object.jpg
